SDHQ Built Dual Battery Kit for 2016-2023 Toyota Tacoma

Optimize the electrical capabilities of your 2016-2023 Toyota Tacoma with the SDHQ Built Dual Battery Kit, designed for those who venture into overlanding. A dual battery setup ensures that one battery is dedicated to starting the vehicle, while the other powers accessories without affecting the start-up battery.

Vehicle Suitability: This system is tailored for the 2016-2023 (3rd Gen) Toyota Tacoma models with ATRAC.

Key Features:

• In-house 3D CAD designed and engineered with SDHQ's renowned quality.
• Hassle-free bolt-on installation without the need for drilling.
• Enhanced weight distribution thanks to the secondary battery's strategic placement.
• Supports battery sizes up to 11 1/4” W x 7” D x 7 ⅜” T.
• Robust black powder-coated finish.
• Includes an integrated mount for the Blue Sea Systems ACR.
• Designed to work with 2 new matching batteries (not included).

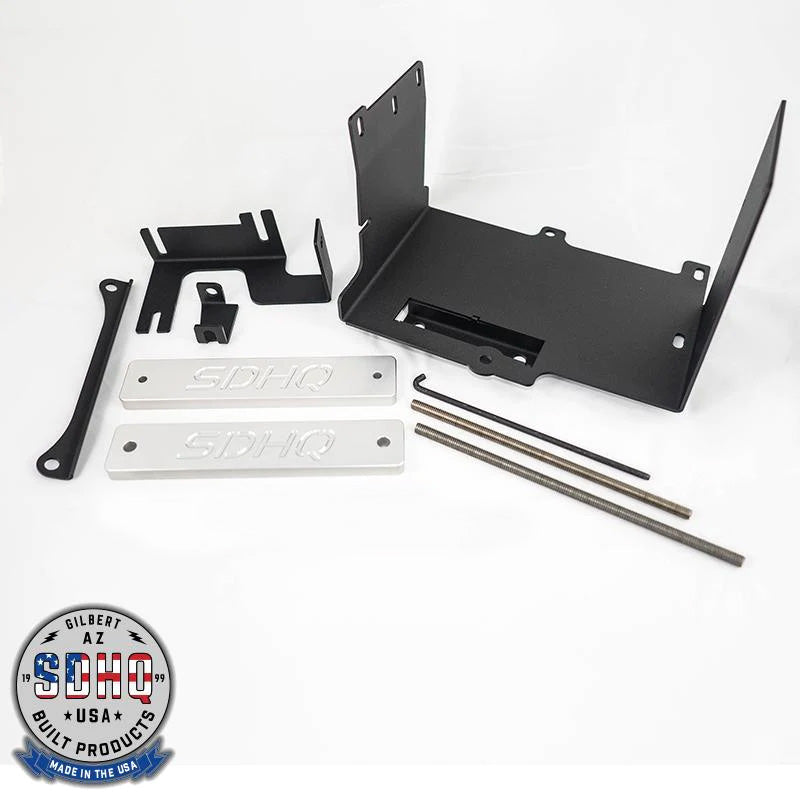

Kit Contents:

• SDHQ Dual Battery Wiring Kit (SDHQ-50-3002-U1): Complete with cross-linked cables to ensure high-quality connections and electrical efficiency.
• HD Billet Main and Secondary Battery Terminal Kits (SDHQ-02-3003-C2 & C1): For a superior connection and the convenience of multiple accessory hook-ups.

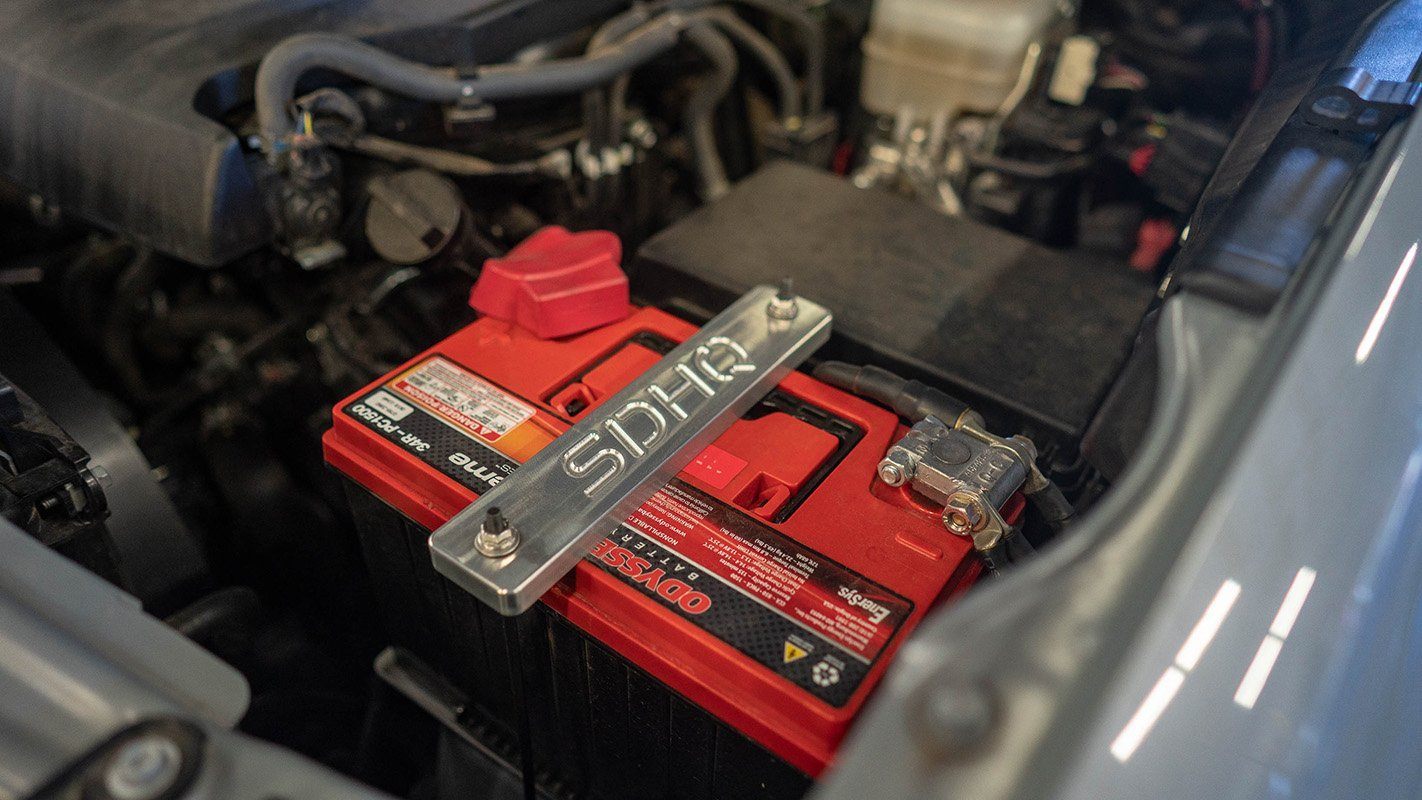

• 34R Main Billet Battery Hold Down (SDHQ-50-3005-U1): Provides a firm hold using premium 6061 Aluminum for the main battery.

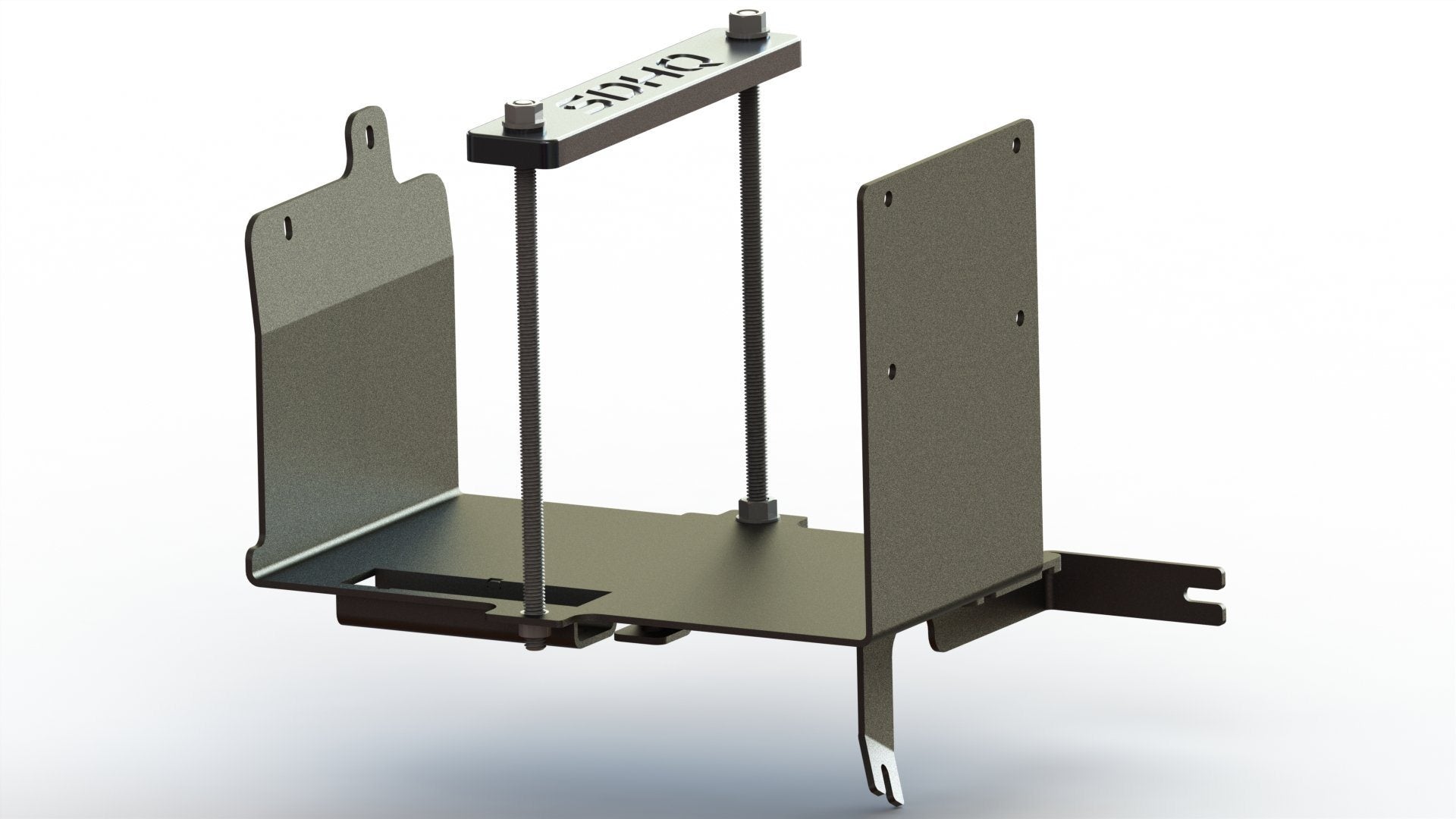

• Secondary Battery Tray Kit (SDHQ-55-3001-G3): Facilitates the installation of a secondary battery without the need for vehicle modifications.
• Blue Sea Systems ACR: Manages the charge and isolation of the secondary battery with a 500 Amp continuous draw capacity and a 700 Amp capacity for 5 minutes. The ACR is rated for 1450 Amps at 30 seconds for cranking, and can handle live current switching up to 300 amps.

Component Breakdown:

• Wiring Kit: Includes 2 AWG and 4 AWG cables for main to aux battery ground and 6 AWG for body upgrades, enhancing connection and grounding.
• Battery Terminals: Feature multiple pads for various connections, made from Billet 6061 Aluminum, and come with stainless steel hardware.
• Battery Hold Down: Anodized for durability, designed for 34R size aftermarket batteries, with an available extension kit for other sizes.
• Blue Sea Systems ACR: Ensures your second battery is automatically charged when the vehicle is running but isolated when the engine is off, preventing drain. The ACR includes undervoltage lockout below 9.6 Volts and overvoltage lockout above 16.2 Volts. Additionally, it offers the option for remote control and provides LED indicators for battery status.

By selecting the SDHQ Built Dual Battery Kit, you are investing in the most reliable system to keep your Tacoma powered through all your off-grid journeys, with all necessary components for a seamless and robust install.
