overview

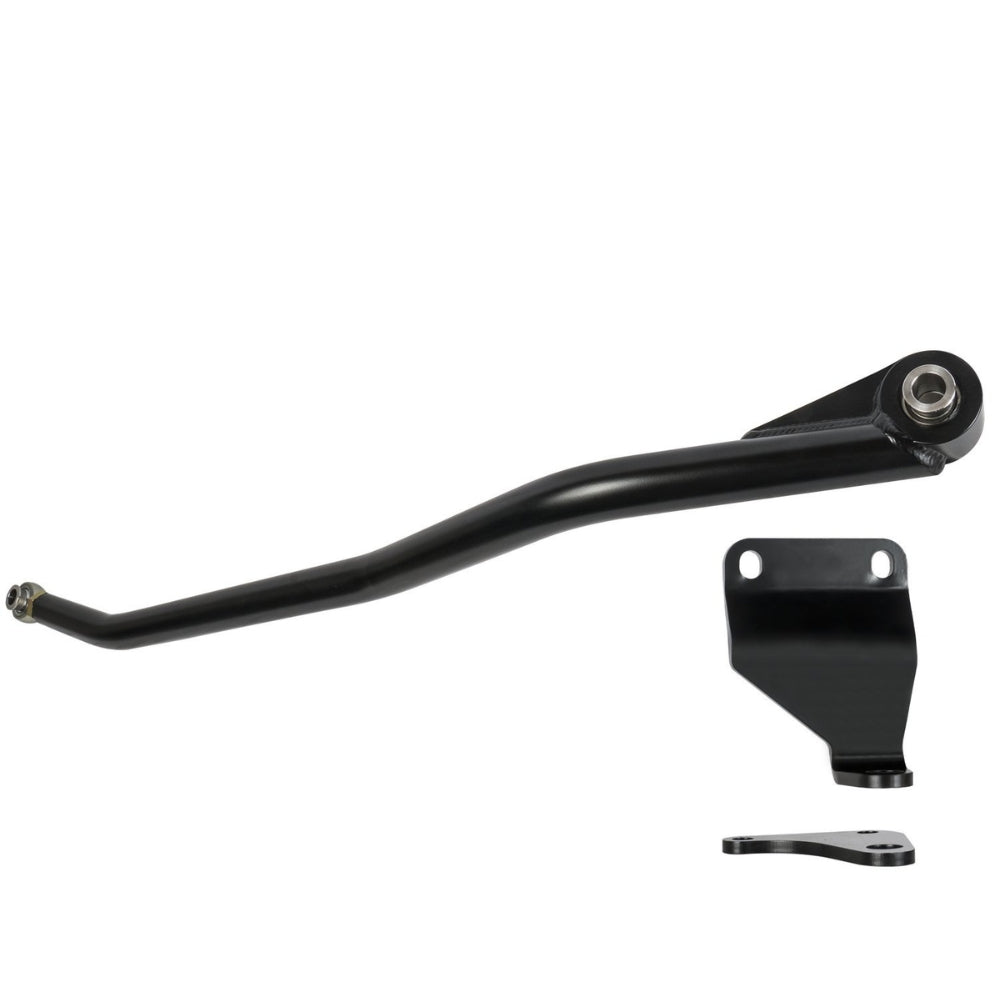

Synergy Manufacturing's Heavy Duty Adjustable Front Track Bar for the '13-23 Ram 3500 4x4. Adjustable track bars are used to help center your axles when leveling the truck or running a suspension lift. This track bar significantly improves lateral stiffness over stock and is considerably stronger than stock to hold up to the abuse of large tires and aggressive off road driving.

Length is adjustable on the vehicle to make adjustments a breeze. Uses maintenance free Synergy Dual Durometer Bushings on both ends. Bent to clear most aftermarket differential covers. Pair with Synergy's Drag Link and Tie Rod to bulletproof your steering and guarantee product compatibility from stock height to 4 plus inches of lift.

FITMENT:

• 2013-2023 Ram 3500 4x4

KEY FEATURES:

• Allows centering of front axle when running a suspension lift
• Adjustable without removing from vehicle
• Maintenance Free, no greasing required
• No jam nuts that are impossible to keep tight
• No modifications required to install
• Isolates Noise, Vibration, and Harshness (NVH) increasing ride quality
• Compatible with Synergy HD Steering
• Bent to clear most aftermarket differential covers
• Made from high quality 1.50 inch x .250 wall DOM
• Retains factory track bar mounting bolts & hardware
• Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance
• Synergy double adjuster sleeve & pinch bolt assembly allows for adjustment of track bar length without removing control arm mounting bolt
• Features Synergy Dual Durometer Bushings (DDB) with Teflon bearing surface for a maintenance free design focusing on performance, flex, longevity, and ride quality
• 100 percent bolt on components assures an easy, trouble free installation with the use of basic hand tools

TECH INFO:

• Compatible from 0-4 inches of lift in the stock mounting locations with no bump stop spacing required. Drop pitman arm and front track bar relocation bracket recommended for lifts over 4 inches and requires 2 inches of bump stop spacing
• Can be used with lowered trucks (competition sled pulling) to re-center the axle
• The replacement adjustable joint is 4810-01 and the replacement bushings are 4328-01
• Min/max lengths: 37.75 inches / 39.25 inches
• OEM Track Bar is 38.63 inches or 38.75 inches For Power Wagons
