The Dirt King Fabrication long travel kit for the 2015-2020 Ford F-150 was developed to drastically improve the Ford F-150's off-road handling without compromising its day to day driving characteristics.

This suspension system allows for 13” of travel and accepts up to a 37” tire. The kit is compatible with 2WD models and 4WD models along with the purchase of extended axle shafts. Our upper and lower arms are designed with 1” stainless steel uniballs for the outer pivots instead of ball joints for strength and increased articulation. The suspension system allows for bypass shocks to be added or can adapt to the factory sway bar. This kit is CAD designed, thoroughly tested, and 100% made in America.

KEY FEATURES:

• Bolt on application, minimal modifications required
• Utilizes American made FK bearings
• 4130 chromoly uniball cups
• Polyurethane bushings for the UCA’s
• Delrin bushings for the LCA’s
• Zinc plated inner bushing sleeves
• Grease fittings for easy servicing
• 3/16" and 1/8” boxed plate construction
• Internally ribbed with extrusions for weight reduction
• Limit strap tabbing
• Bypass tabbing
• Ability to adapt factory sway bar

SPECS:

• Wheel Travel: 13”
• Amount of Lift: 0-4”
• Track Width: 3.5” wider per side
• Maximum Tire Size: 37”
• Maximum Backspacing: 4.75”
• Minimum Rim Size: 17”
• 4WD Coil Over Shock Size: King or Fox OEM replacement with 700lb springs
• 2WD Coil Over Shock Size: 2.5” x 8”
• Bypass Shock Size: 2.5” x 8”
• Compatible with Sway Bar: Yes (DK-900955)

WHAT'S INCLUDED:

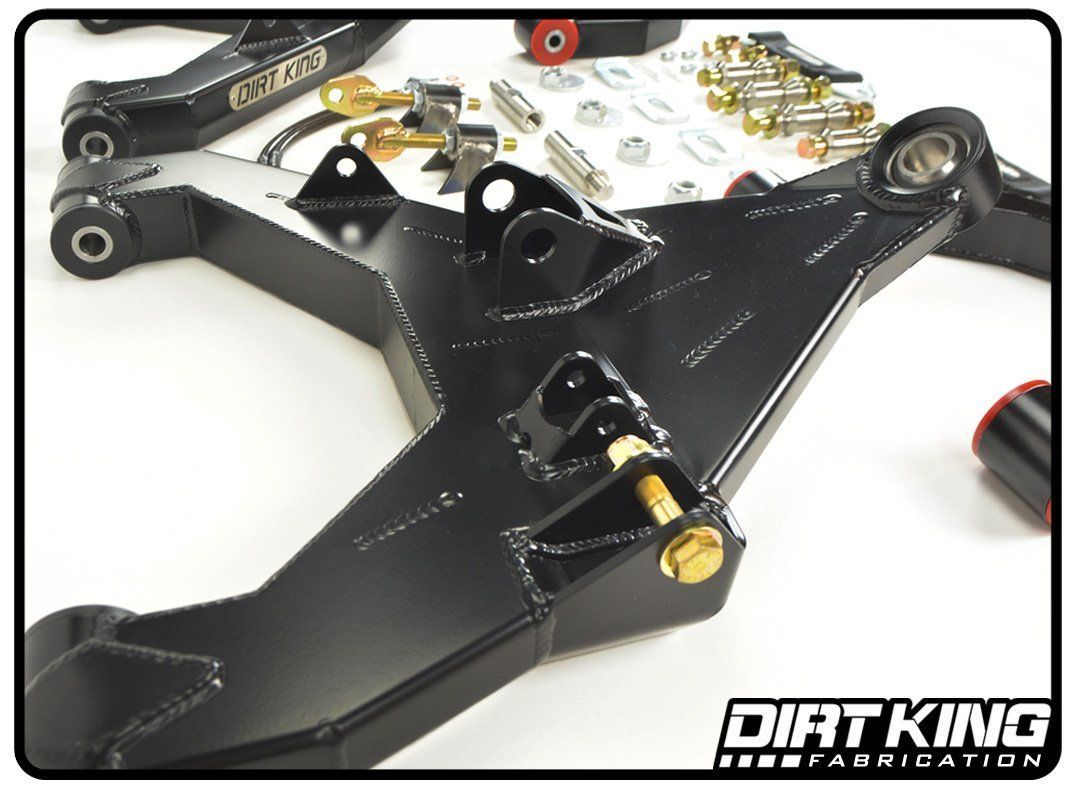

• Boxed plate upper control arms
• Boxed plate lower control arms
• 9" quad wrapped limit straps
• Weld on adjustable limit strap mounts
• 17-4 stainless steel misalignment spacers
• 17-4 stainless steel tie rod extensions
• DOT approved extended brake lines
• Grade 8 mounting hardware
• Lower arm alignment cams
